The project
A bird safety film specified by the architects, installed on new construction
The hazard

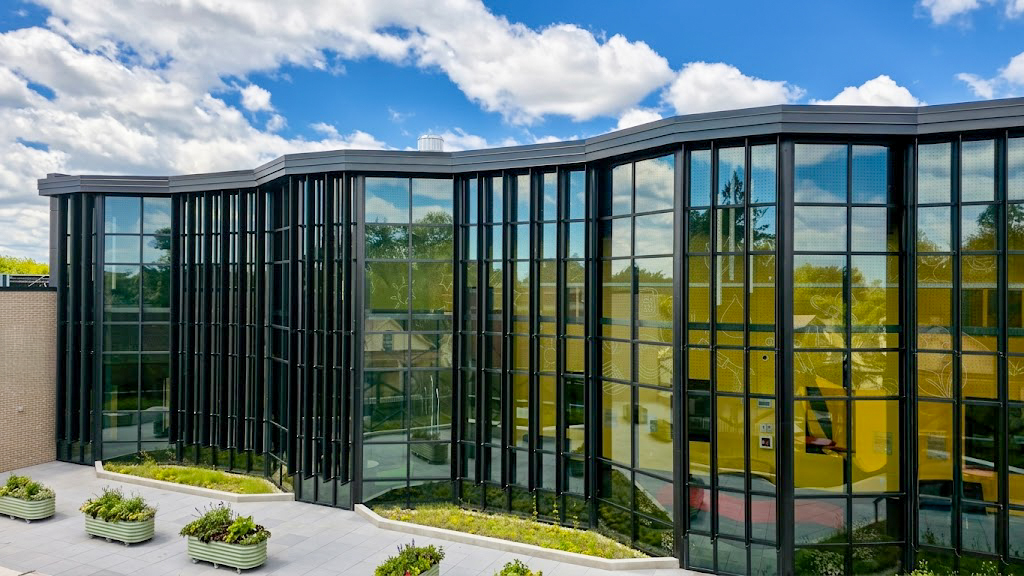

The new school’s design features a tall, curved wall of glass. Glass like this reflects sky and trees, and birds often do not see it as a barrier. The architects contacted Solar Gard to specify a bird safety film for the wall, and the top four rows of glass were the areas of most concern.
The specification
AAA Glass Tint supported the specification with samples and mockups, then installed Solar Gard WingSafe Black Dot on 204 panels, about 1,895 square feet, across the top four rows of the wall. AAA Glass Tint is a Solar Gard authorized dealer.
The pattern

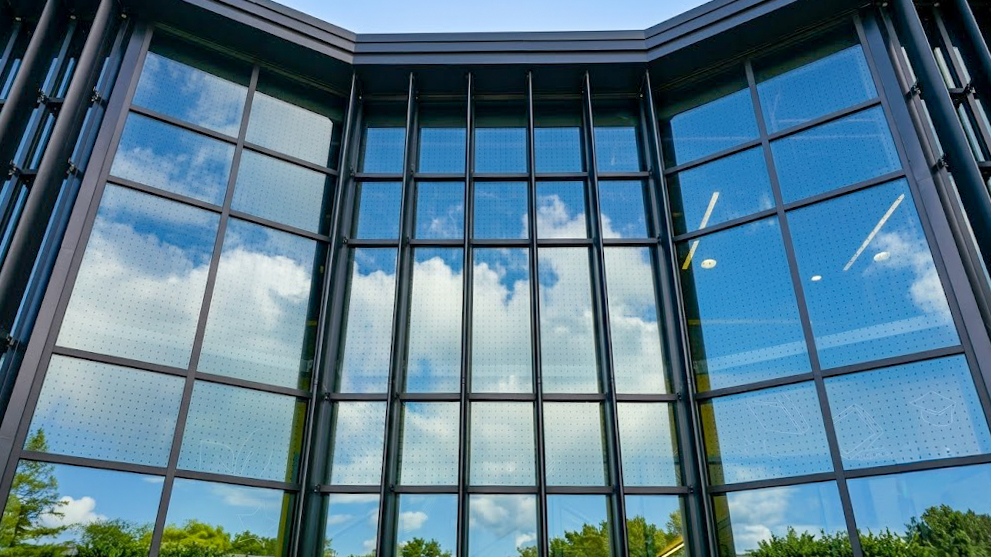

WingSafe Black Dot is an exterior film with small black dots, 11 millimeters across and spaced 65 millimeters apart in a grid. Birds see the pattern as something to avoid, while people inside look through the clear film between the dots. It has to go on the outside of the glass: on the inside, reflections on the outer surface can hide the pattern from birds.
Access and schedule
Because the school was new construction, we worked with the construction company to fit the installation into its schedule and site requirements. The angles of the curved wall meant the work was done from an 85 foot boom lift. We do not subcontract installation; our own crews do the work.
The result
The top four rows of the school’s glass wall now carry a pattern that the American Bird Conservancy rates at a threat factor of 4, well inside its bird-friendly range. From inside, the film is clear between the dots, so the daylight and views the design was built around are kept.
Photographs

Project record
Project at a glance
- Client: Red Apple School, a K-8 school in Racine, Wisconsin
- Year: 2026, new construction
- Problem: A large curved glass wall that could cause bird collisions
- Film: Solar Gard WingSafe Black Dot, specified by the project’s architects, applied to the exterior of the glass
- Glass treated: The top four rows, about 1,895 square feet, 204 panels
- Access: An 85 foot boom lift, because of the angles of the wall
- Bird rating: American Bird Conservancy threat factor of 4, as reported by Solar Gard
Published figures
Solar Gard’s published figures for WingSafe Black Dot:
- American Bird Conservancy threat factor: 4, tested on clear glass. ABC considers a material bird-friendly at a threat factor of 30 or less.
- Visible light transmitted: 81 percent on 6 mm clear double glazing, so classrooms keep their daylight and view
- Ultraviolet light blocked: more than 99 percent
- Warranty: 10 year product warranty on vertical surfaces
For a similar project
How a bird strike film project starts
Questions
Questions about this project
What is an American Bird Conservancy threat factor?
It is the share of birds in ABC’s flight tunnel tests that flew toward a material instead of avoiding it. Lower is better. ABC treats 30 or less as bird-friendly; WingSafe Black Dot is rated 4 on clear glass.
Does bird film go on the inside or the outside of the glass?
Patterned films like WingSafe go on the outside, where birds can see them. Reflections on the outer surface can hide a pattern applied inside.
What about bird collisions on an existing building?
The same exterior films can be added to glass already in place, usually on the areas where birds are hitting. We explain how in Bird Collision Window Film for Existing Buildings.
Can bird film be specified on new construction?
Yes. On this project the architects specified it with Solar Gard, and we supplied samples and mockups, then scheduled the installation with the construction company. Bird control film has its own specification section, 08 87 26; we explain how to write a film specification in How to Write a Commercial Window Film Specification.
Does the film block the view?
Very little. The dots cover a small part of the glass, and Solar Gard lists 81 percent visible light transmission on 6 mm clear double glazing.
Sources: AAA Glass Tint project records, 2026; Solar Gard, WingSafe Black Dot and White Dot technical sheet, SKEX0141A4WSINT 02/26, and WingSafe Bird Protection Film FAQ, SK0168WSBPFFAQ; American Bird Conservancy, Testing and Research. Reviewed by David Johnson, owner of AAA Glass Tint. Last updated November 16, 2026.
